Ultrasonic separators
The RSS Ultrasonic separator is made for separating oil/gas and water/brine while level of the heavy phase is measured by an ultrasonic sonar.
Avalible in different materials and pressure level. Setup from PC software with possibility to log to file and send data via OPC UA.
Different types
HPHT separator
Maximum working pressure: 700bar
Maximum working temperatur: 150℃
Material body: Hastelloy C-276 or Inconel 625
Material wetted parts: Peek and Hastelloy C-276 or Inconel 625
Separator bore: Ø28mm
Acustic bore: Ø28mm
Bore hight: 210mm
Volume total: 260cm³
Volume measurable: 160cm³
Flow ports: 4x Autoclave speedbite 1/8” W125
Mini separator
Maximum working pressure: 350bar
Maximum working temperatur: 150℃
Material body: AISI 316
Material wetted parts: Peek and AISI 316
Separator bore: Ø12mm
Acustic bore: Ø22mm
Bore hight: 150mm
Volume total: 75cm³
Volume measurable: 45cm³
Flow ports: 4x Autoclave speedbite 1/8” W125
Custom separator
On request:
Other materials
Different pressure and temperature range
Custom geometry
Heated enclosure
Software

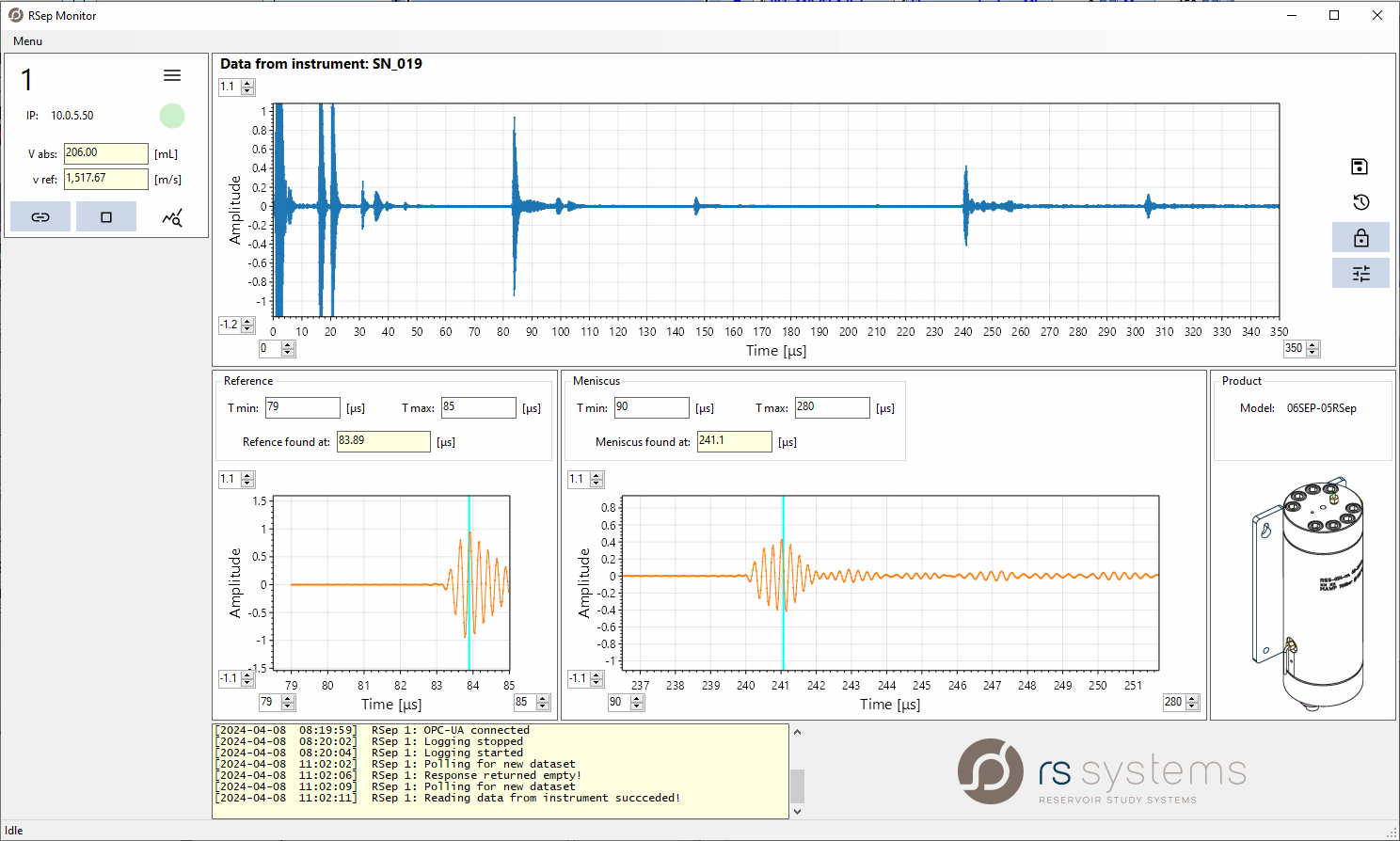

Main window for separator software
Support for multiple separators in same network.
Easy logging to file (.csv) or connect to external program for logging (OPC UA).
Change parameters to match the fluid you want to measure.
Logging window for separator software

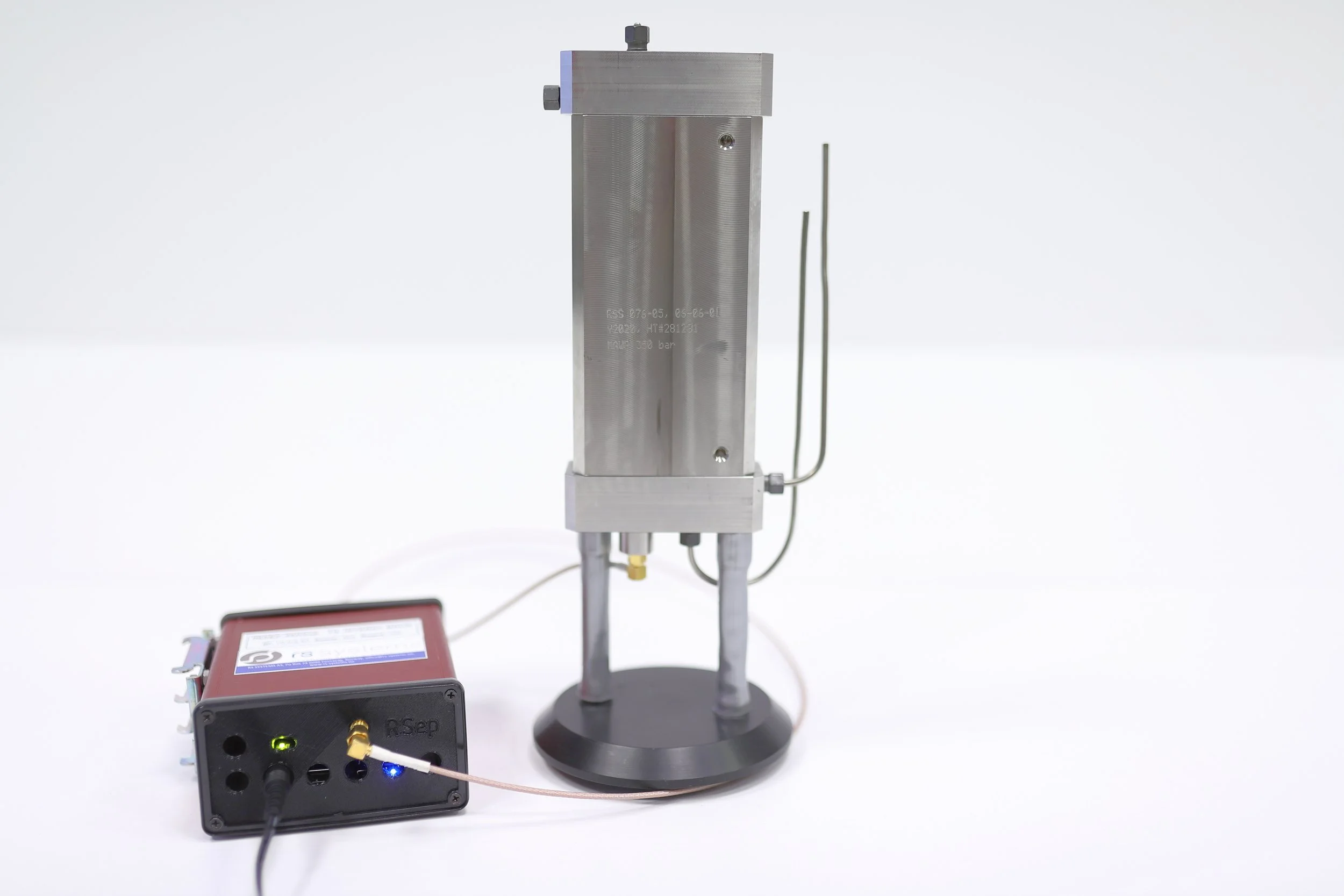

RSS Mini separator with controller.

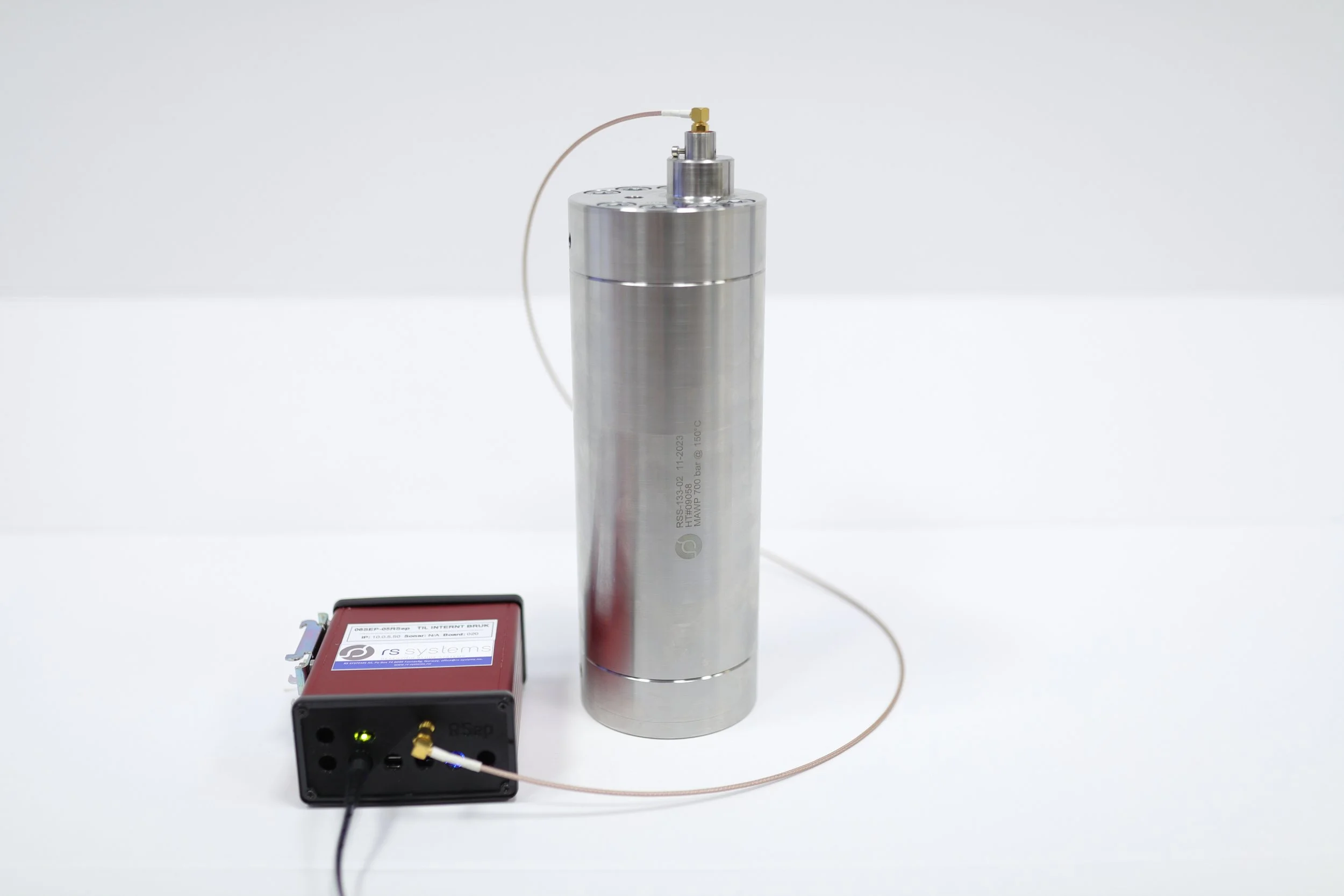

RSS HPHT separator with controller.
RSS HPHT separator connected to a system inside an heated enclosure.
