Hot Flood Core Cleaning System

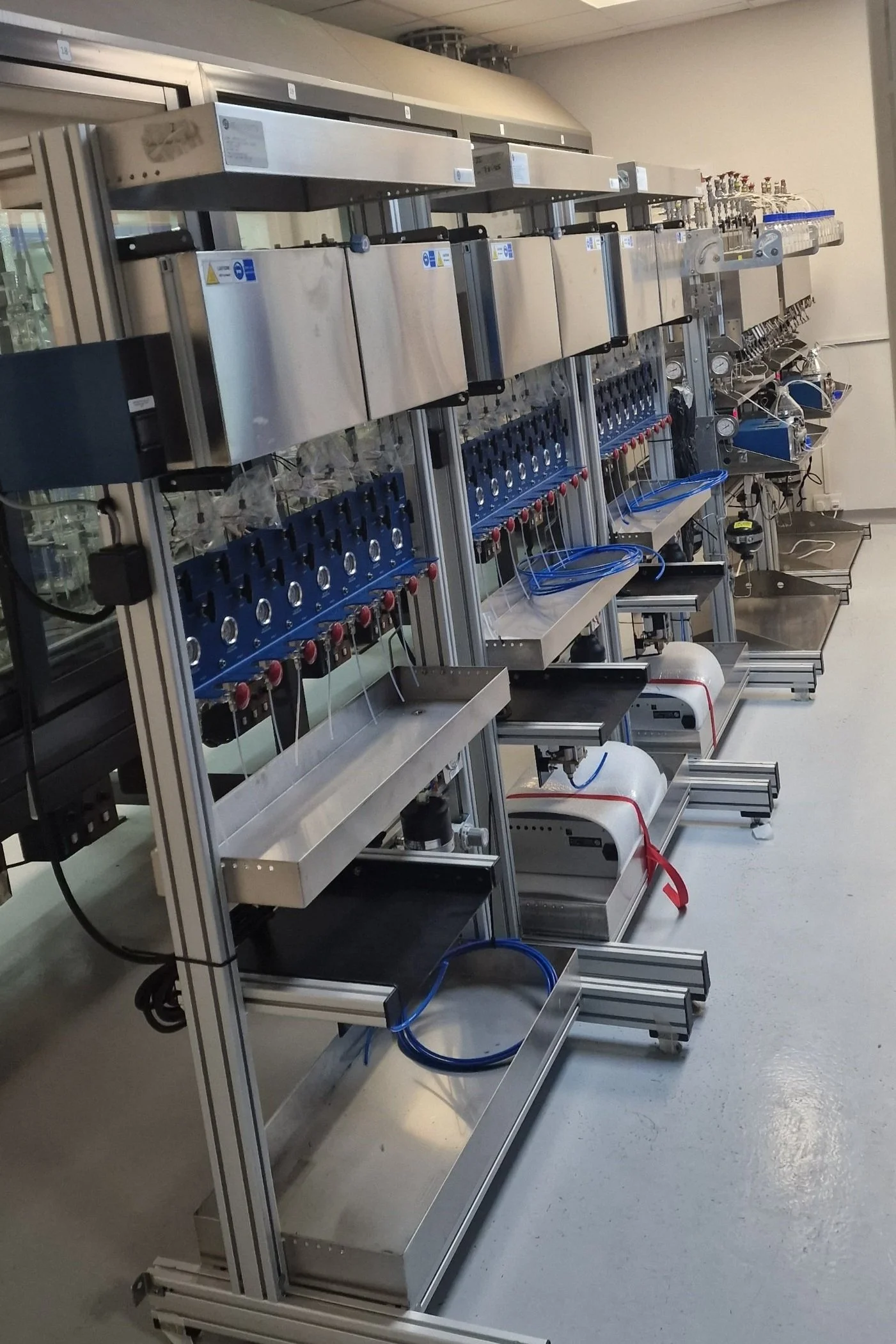

The most efficent method of making fresh state rock core samples clean, is by forced flood of hot solvents. Rock core samples are mounted in a coreholder inside a pressurized rubber sleeve, and hot solvent flood is forced through the sample axially.

Key features

  • Easy to use interface, with touchscreen and PLC.

  • Semi-automatic sequence for up to eight individual coreholders.

  • Compact layout of complete setup (120cm*60cm footprint).

  • Closed system, and with an integrated fume hood ready to connect to the laboratory ventilation system.

Technical specification

  • Size: Width 120cm x 160cm x 60cm (WxHxD)

  • Wetted parts: Stainless steel, PEEK, PTFE, PFA, FEP, Viton

  • Power: 230V AC, 1000VA

  • Number of positions: 8

  • Heating cabinet temperature: 30-100ºC

  • Pump: 10ml/min, 30bar (options)
