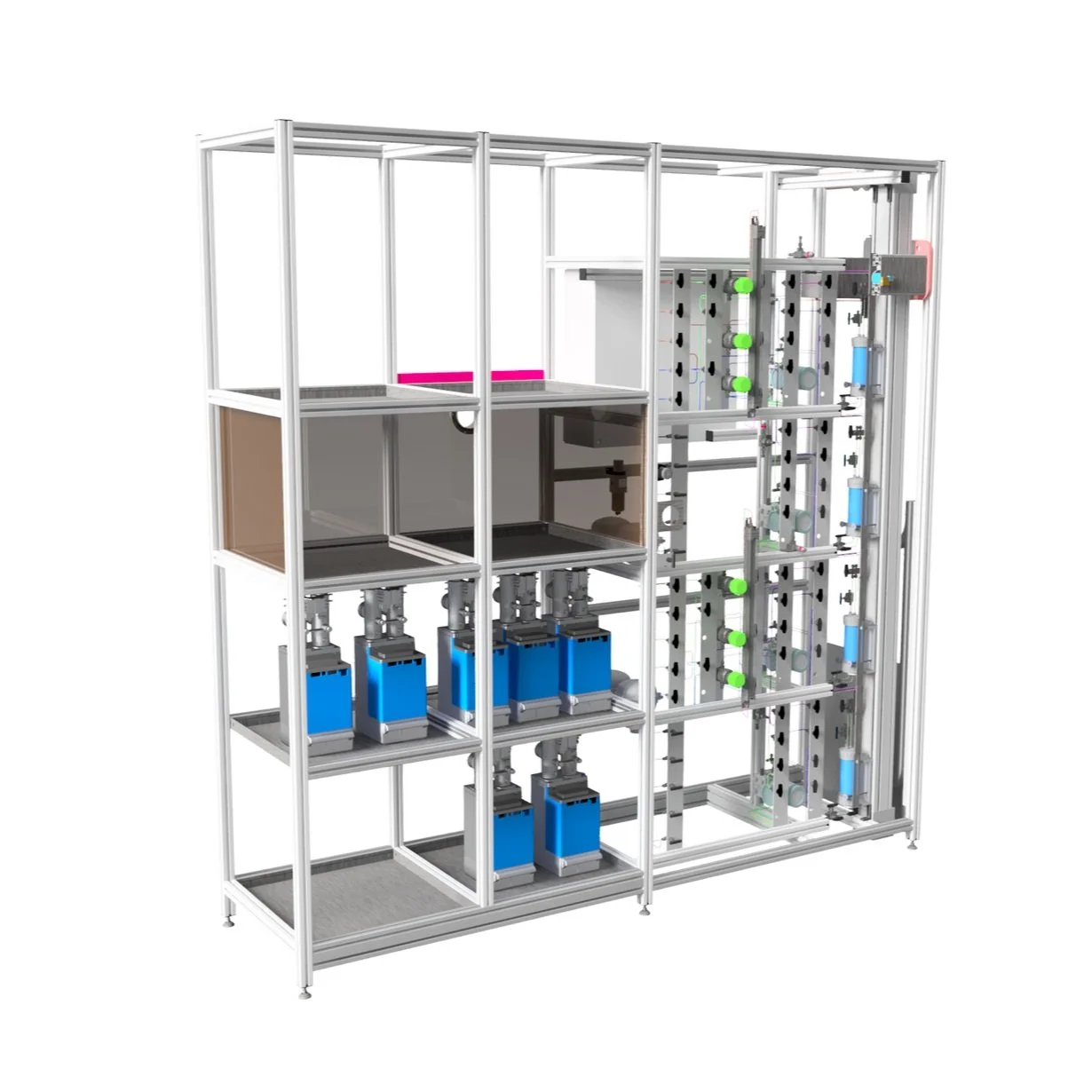

Ambient Conditions Steady State Relative Permeability System with ISSM

Compact multi position core flooding rig. Up to four positions, and double set of recirculation SS flood system, with one common gamma scanner for continuous monitoring of in situ saturation monitoring (ISSM).

Key features

  • Up to four sample positions with linear gamma scanner.

  • Double set of recirculation pump system for steady state flooding.

  • Back pressure regulator for sampling and purging in integrated fume cabinet.

Optional features

  • Heated zones, for demanding fluid systems

  • Automatic valves controlled from touch screen

Pneumatic Vindum valves controlled from PLC via touch screen

Dual recirc pump system with Vindum precision pumps.

Dual recirc pump system with Vindum precision pumps.

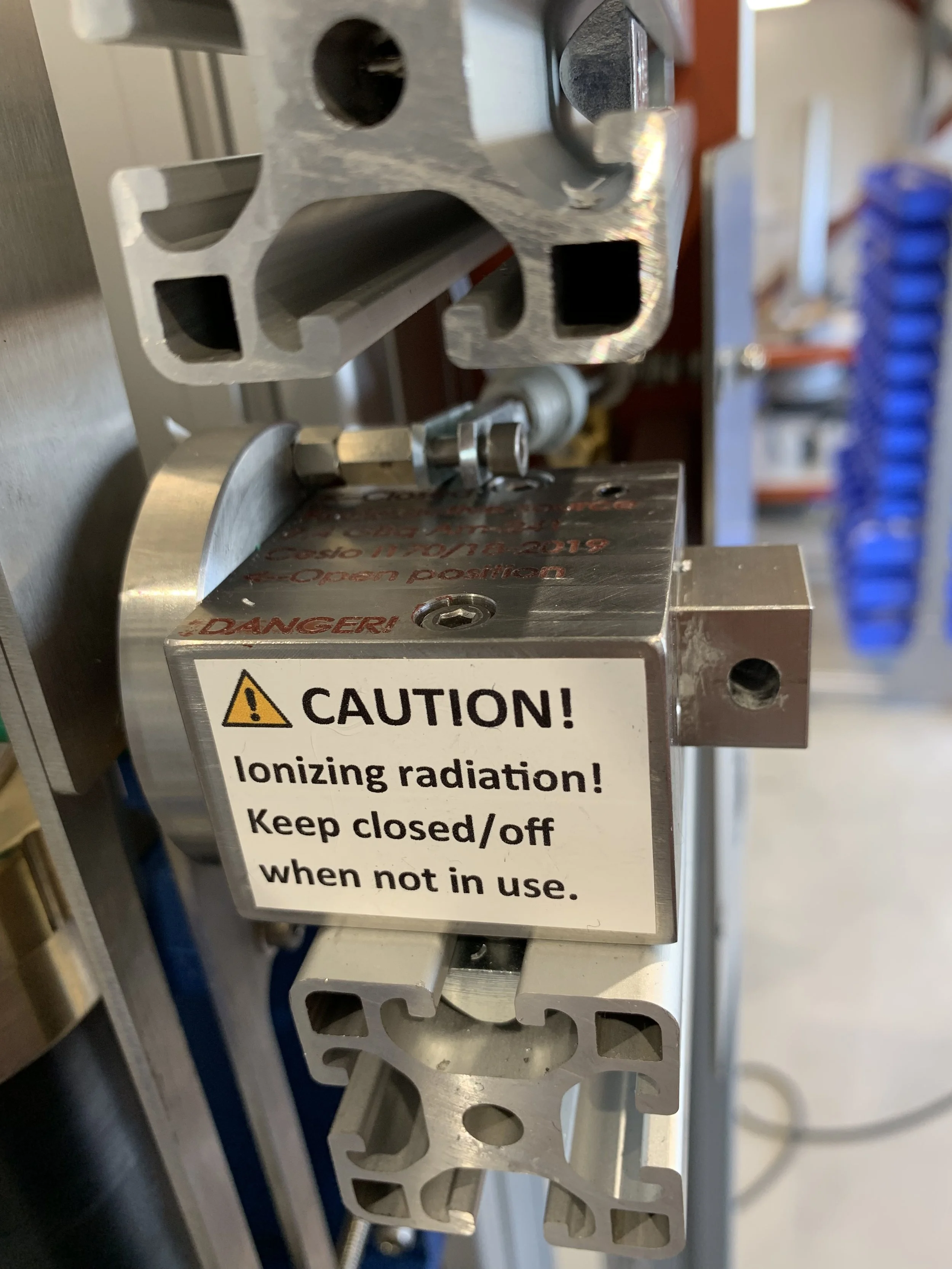

Gamma source capsule with auto close function and padlock.

Gamma source capsule with auto close function and padlock.

One out of four sample positions with RSS coreholder.

One out of four sample positions with RSS coreholder.

Ambient valve manifold and linear gamma scanner on the right.

Ambient valve manifold and linear gamma scanner on the right.
